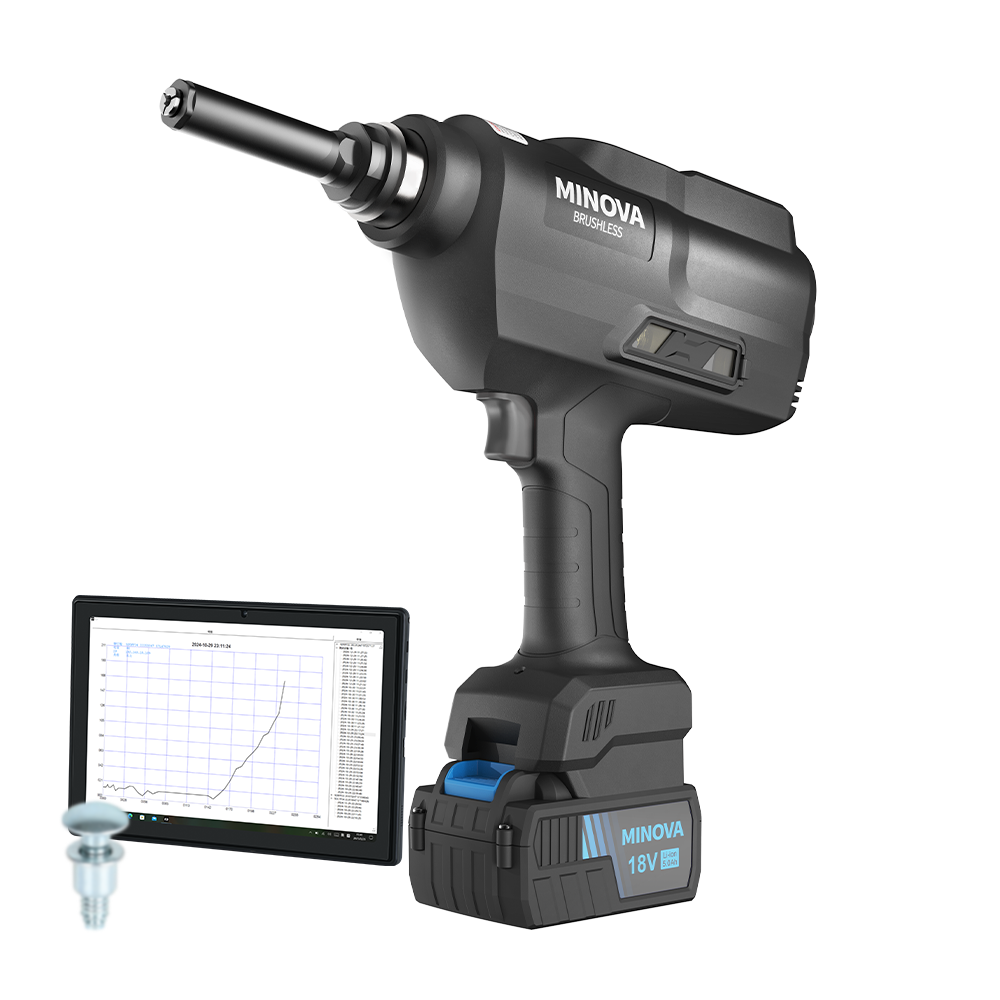

KD-0220TM Smart Rivet Tool

Name: KD-0220TM Smart Rivet Tool
Brand: MINOVA
Rating: 5.0 (98 reviews)

Capable of adjusting pulling force according to requirements.
Equipped with pulling force detection and alarm functions.
The machine display can show the riveting curve.
An external computer can control riveting data and curves of 1-30 machines and adjust settings.
The machine can store 100 riveting programs that don't require adjustment, and rivet operations can be directly called by the program.

Product Details
Pull Force	20kN (4500lbf)
Stroke	30mm (1.2")
Net Weight	3.2kg (7lbs) (with Battery)
Battery	18V / 5.0Ah
Charger	100-240V AC / 50-60Hz 21V / 8A
Charging Time	Approx. 40 mins
Fastener Capacity	BBTAIL 6.0 mm (7/32") (steel and aluminum material) BBTAIL 8.0 mm (5/16") (aluminum material)
Service Life	100000 times Based on Steel BBTAIL Rivet 6.0mm (7/32")
Basic Kit	1.KD-0220TM Handle 2.BBTAIL 6.0mm (7/32") or BBTAIL 8.0mm (5/16") Nose Assembly 3.Remote control computer display screen 4.Battery*2 5.Charge 6.Special Wrench 7.High Quality Tool Box
