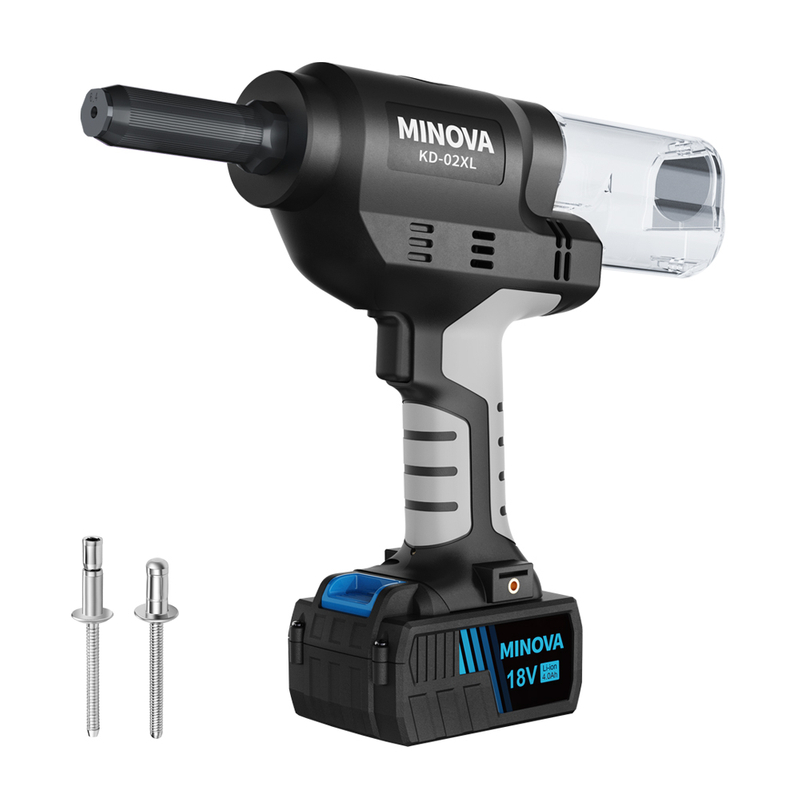

KD-02XL 18V Brushless Tool for Blind Rivet / Heim-lok

  • Specially engineered anti-loosening nose piece securely grips rivets, preventing detachment.
  • Features a brushless motor for superior durability and extended service life.

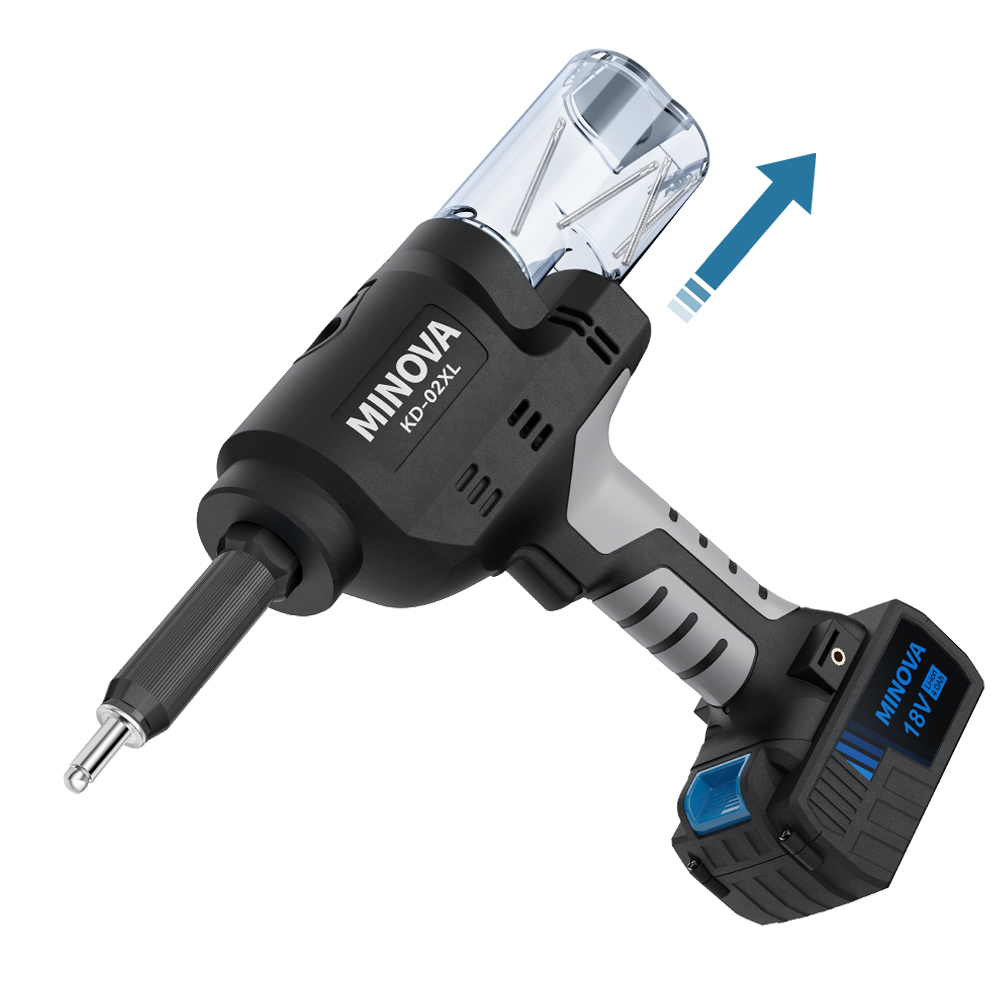

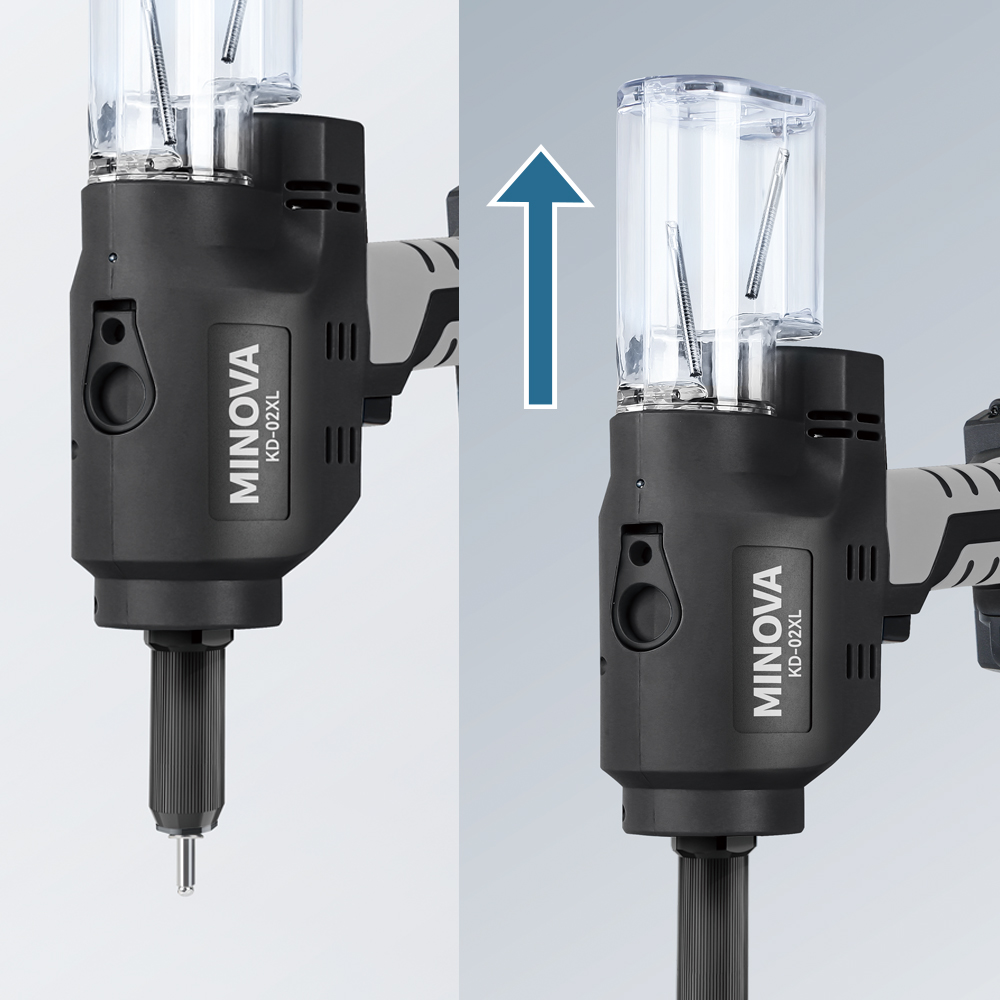

  • Self-ejecting mandrel system directly deposits tail pins into the mandrel collector.
  • With an extended riveting stroke of 28mm (1.1 inch), it can accommodate 6.4x22mm (0.25"x0.86") blind rivet.
Availability:
Quantity:
  • KD-02XL

  • MINOVA

Technical Data
Pull Force20kN (4500lbf)
Stroke28mm (1.1")
Net Weight2.4kg (5.3lbs) (with a Battery)
Battery18V / 4.0Ah
Charger100-240V AC / 50-60Hz 21V / 2.3A
Charging TimeApprox. 100 mins
Nose piece Sets3.2/ 4.0/ 5.0/ 6.0/ 6.4mm (1/8",5/32",3/16",7/32",1/4")
Service Life100,000 times Based on Stainless Steel  Blind Rivet 6.4mm (1/4")

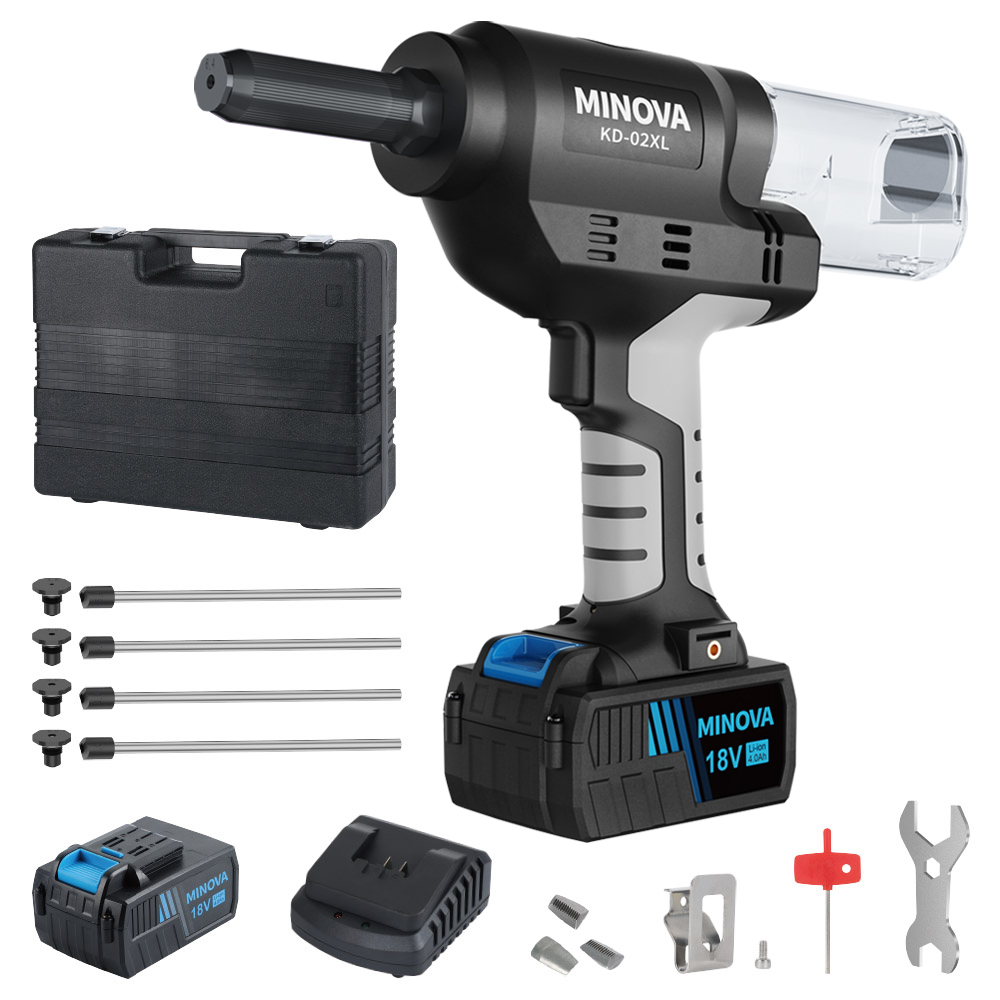

Basic Kit

1.KD-02XL Rivet Gun Body

2.Battery*2

3.Charge
4.Anti-off Nosepiece & Guide Sleeve Kit(3.2/4.0/5.0/6.0/6.4mm)5.One Pair of Jaws
6.Special Wrench

7.Belt Clip and Wrench

8.Mandrel Collector

9.High Quality Tool Box
