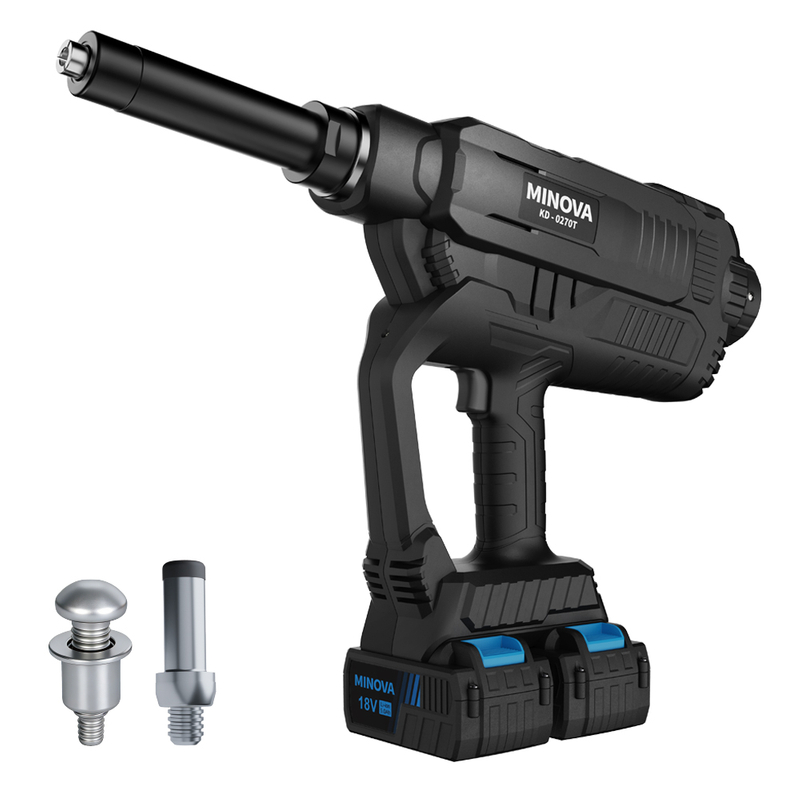

KD-0270T 36V Brushless Tool for 12mm BBtail

Name: KD-0270T 36V Brushless Tool for 12mm BBtail
Brand: MINOVA
Rating: 5.0 (54 reviews)

Capable of adjusting pulling force according to requirements.
Integrated force monitoring system with visual/audible alarms for overload protection.

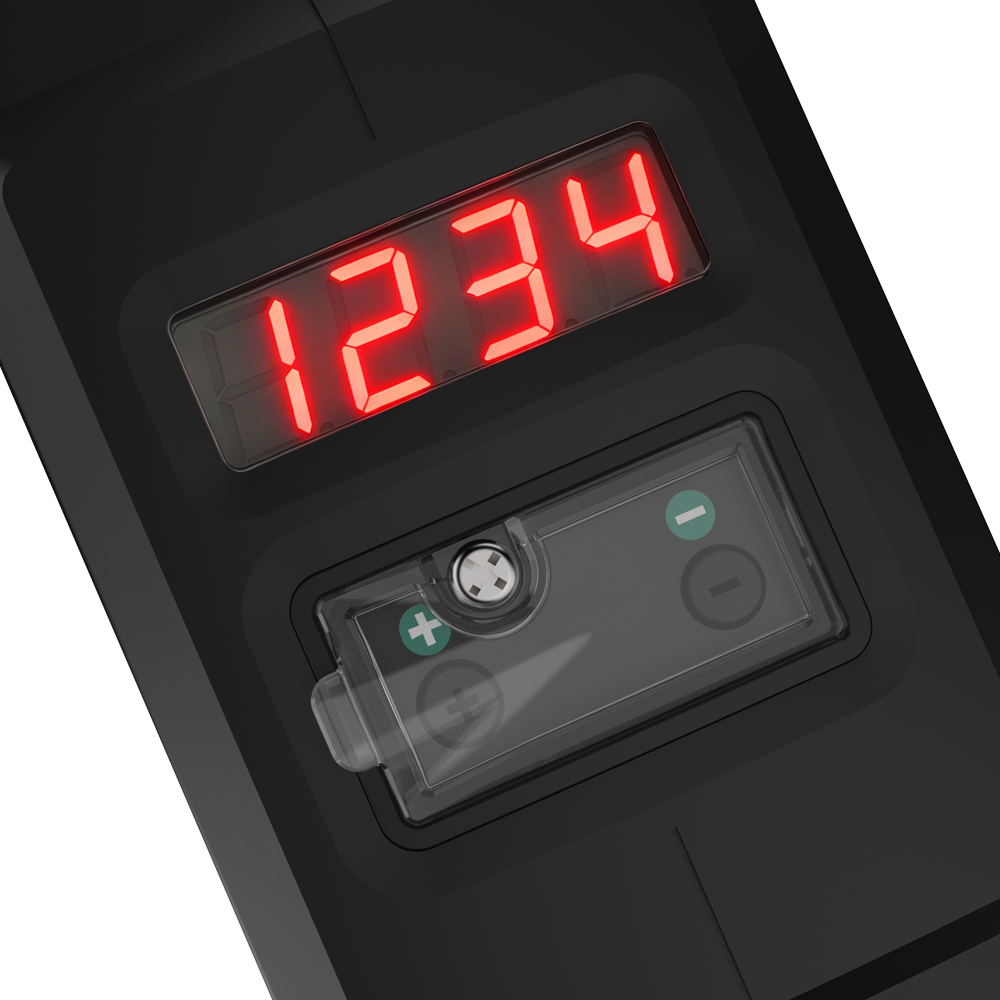

Smart rivet counter automatically tracks and displays total operation count.
Large capacity with long endurance, and compliant with non-hazardous material safety transportation requirements.

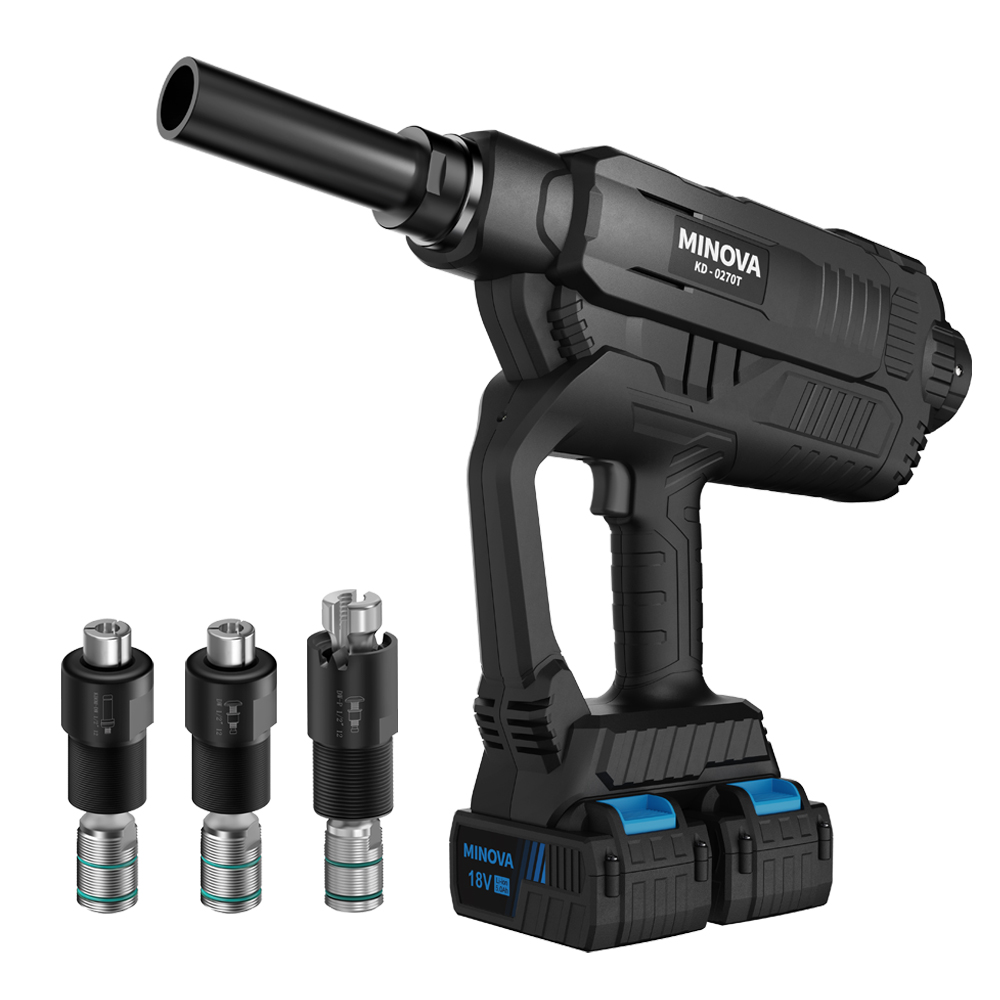

Cutter Nose Assembly is optional.

Product Details
Pull Force	70kN (15700lbf)
Stroke	60mm (2.4")
Net Weight	6.8kg (15lbs) (with two batteries)
Battery	18V / 5.0Ah
Charger	100-240V AC / 50-60Hz 21V / 8A
Charging Time	Approx. 40 mins
Fastener Capacity	Steel BBTAIL Rivet : 12.0mm (15/32")
Service Life	50000 times Based on Steel BBTAIL Rivet 12.0mm (15/32")
Repeatability accuracy of Force	±1.5%
Batch accuracy of Force	±3%
Riveting Data	Based on 18V/5.0Ah battery*2, Steel Rivets BBTAIL 12.0mm (15/32"): Approx.300 PCS

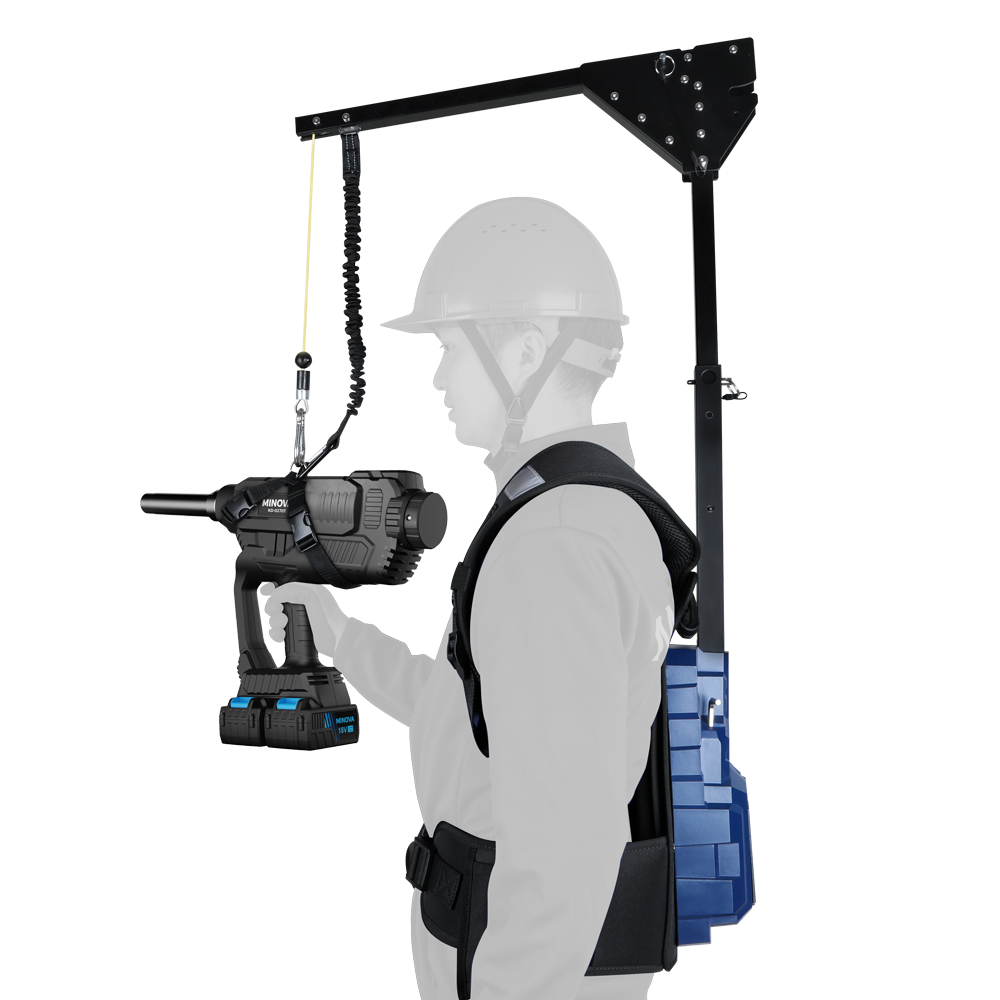

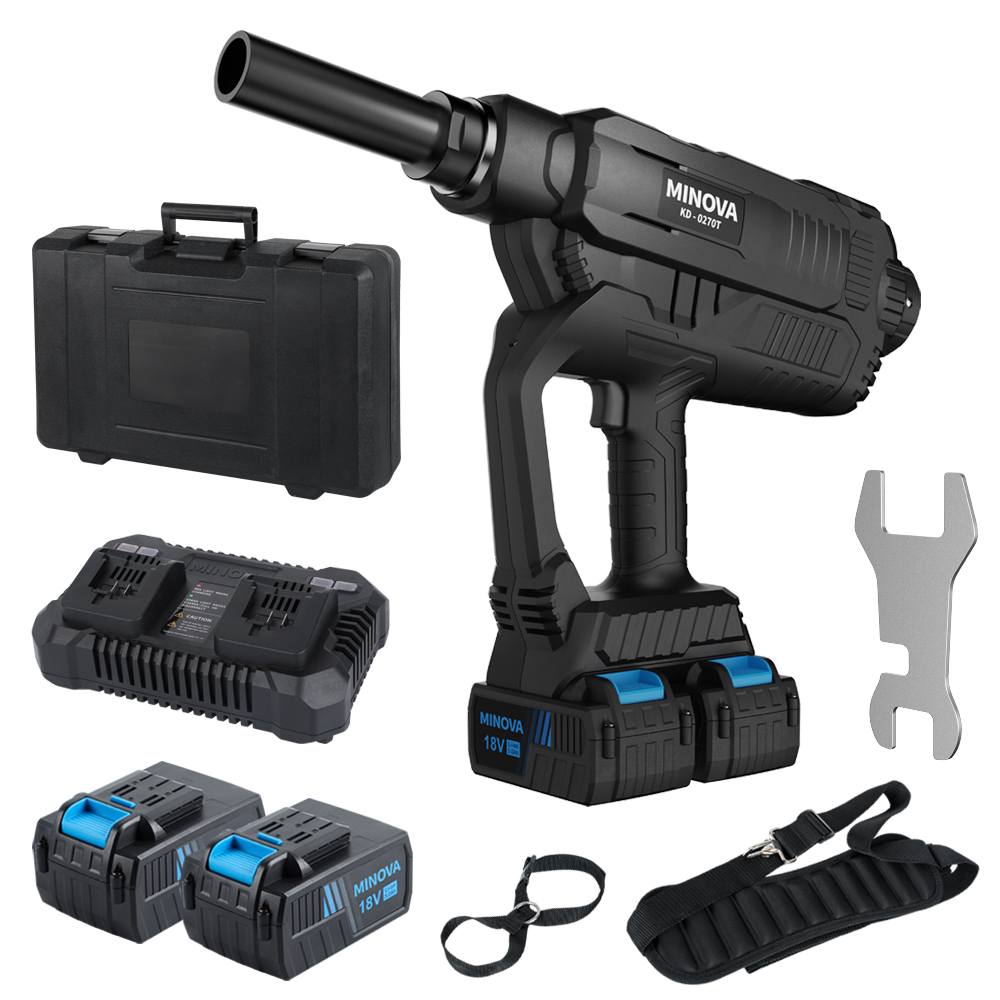

Basic Kit	1.KD-0270T Rivet Gun Body 2.Battery4 3.Charger1 4.Special Wrench 5.BBTAIL 12.0mm(15/32") Nose Assembly 6.Single Shoulder Strap Assembly 7.High Quality Tool Box
