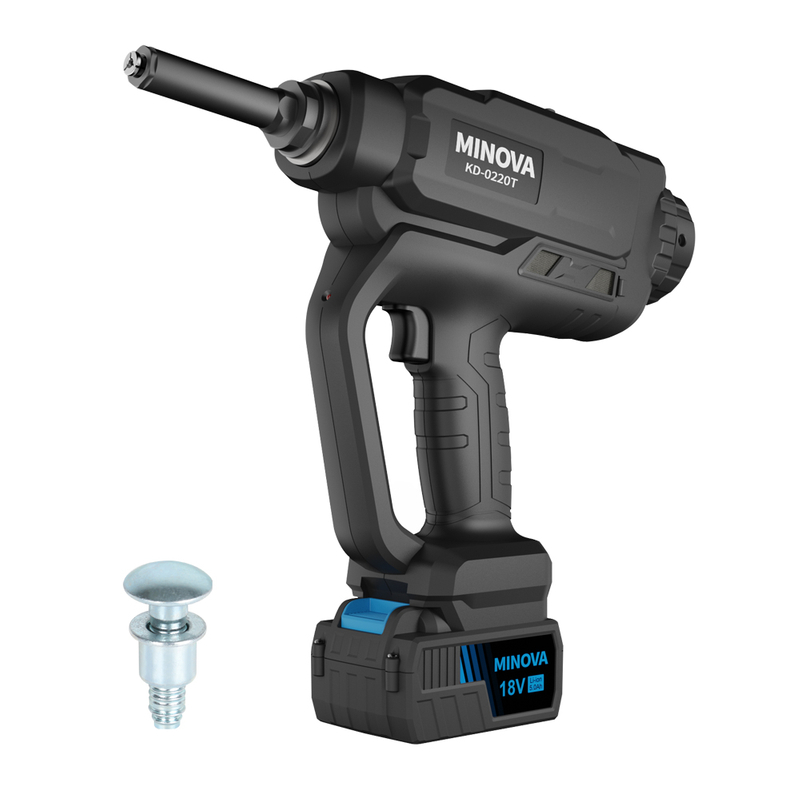

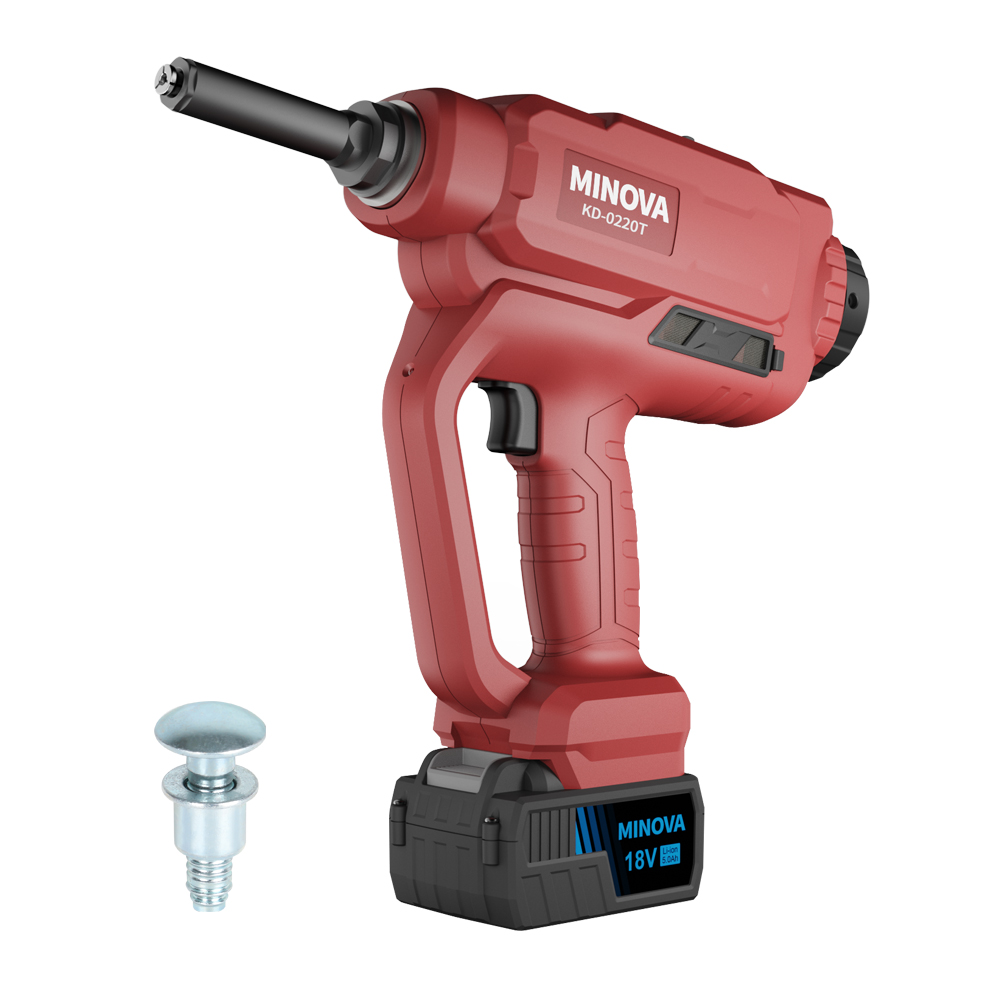

KD-0220T 18V Brushless Tool for 6/8mm BBtail

  • Rivets 6.0/8.0mm aluminum BBTAIL rivets and 6.0mm steel BBTAIL rivets.
  • Capable of adjusting pulling force according to requirements.
  • Equipped with pulling force detection and alarm functions.
  • Intelligently records and displays the total number of riveting operations.
  • Powered by a high-efficiency 18V/5.0Ah lithium-ion battery for extended runtime.
Availability:
Quantity:
  • KD-0220T

  • MINOVA

Product Details
Pull Force20kN (4500lbf)
Stroke30mm (1.2")
Net Weight3.1kg (6.8lbs) (with Battery)
Battery18V / 5.0Ah
Charger100-240V AC / 50-60Hz  21V / 8A
Charging TimeApprox. 40mins
Fastener CapacityBBTAIL 6.0mm (7/32") (steel and aluminum  material)
BBTAIL 8.0mm (5/16") (aluminum material)
Service Life100000 times
Based on Steel BBTAIL Rivet 6.0mm (7/32")
Repeatability accuracy of  Force±1.5%
Batch accuracy of Force±3%
Basic Kit1.KD-0220T Rivet Gun Body
2.Battery*2
3.Charger
4.Special Wrench

5.BBTAIL 6.0mm (7/32") or BBTAIL 8.0mm  (5/16") Nose Assembly

6.Single Shoulder Strap Assembly

7.High Quality Tool Box
