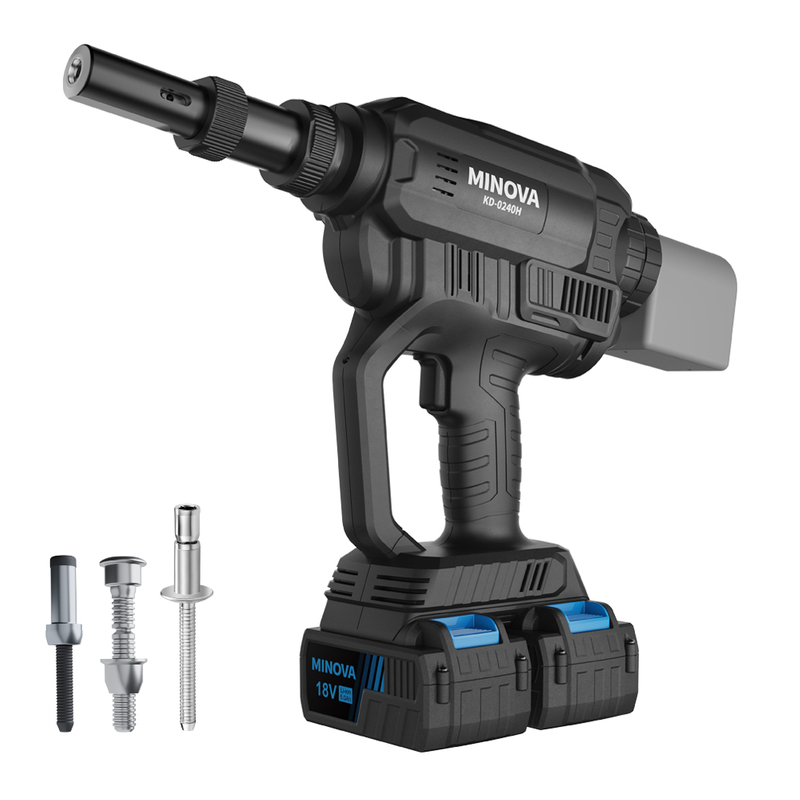

KD-0240H Cordless Brushless Rivet Tool

Name: KD-0240H Cordless Brushless Rivet Tool
Brand: MINOVA
Rating: 5.0 (56 reviews)

KD-0240H is specifically designed for riveting KBOM 8.0mm (5/16"), Lockbolt 8.0mm (5/16"), Lockbolt 10mm (3/8"), Monobolt-style rivets 9.8mm (3/8").
Large capacity with long endurance, and compliant with non-hazardous material safety transportation requirements.

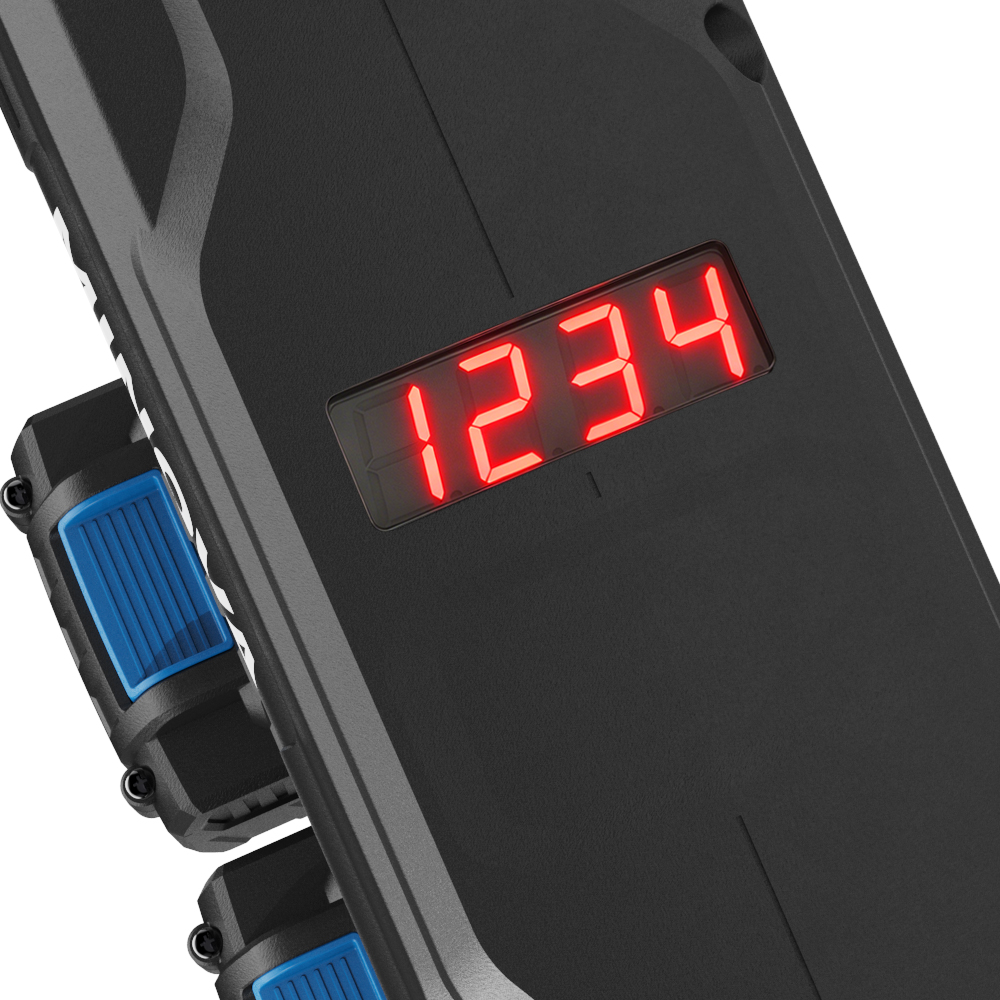

Smart rivet counter automatically tracks and displays total operation count.
Cutter Nose Assembly is optional.

Product Details
Pull Force	40kN (9000lbf)
Stroke	40mm (1.6")
Net Weight	5.7kg (12.6lbs) (with two batteries)
Battery	18V / 5.0Ah
Charger	100-240V AC / 50-60Hz 21V / 8A
Charging Time	Approx. 40mins
Fastener Capacity	KBOM: 8.0mm (5/16") Lockbolt: 8.0mm (5/16"), 10mm (3/8") Monobolt-style rivets: 9.8mm (3/8")
Service Life	50,000 times Based on KBOM 8.0mm (5/16")
Riveting Data	Based on 18V/5.0Ah battery*2, Steel Rivets KBOM 8.0mm (5/16"): Approx.900 PCS Lockbolt 8.0mm (5/16"): Approx.1200 PCS Lockbolt 10.0mm (3/8"): Approx.1000 PCS Monobolt-style rivets 9.8mm (3/8"):Approx.1000 PCS

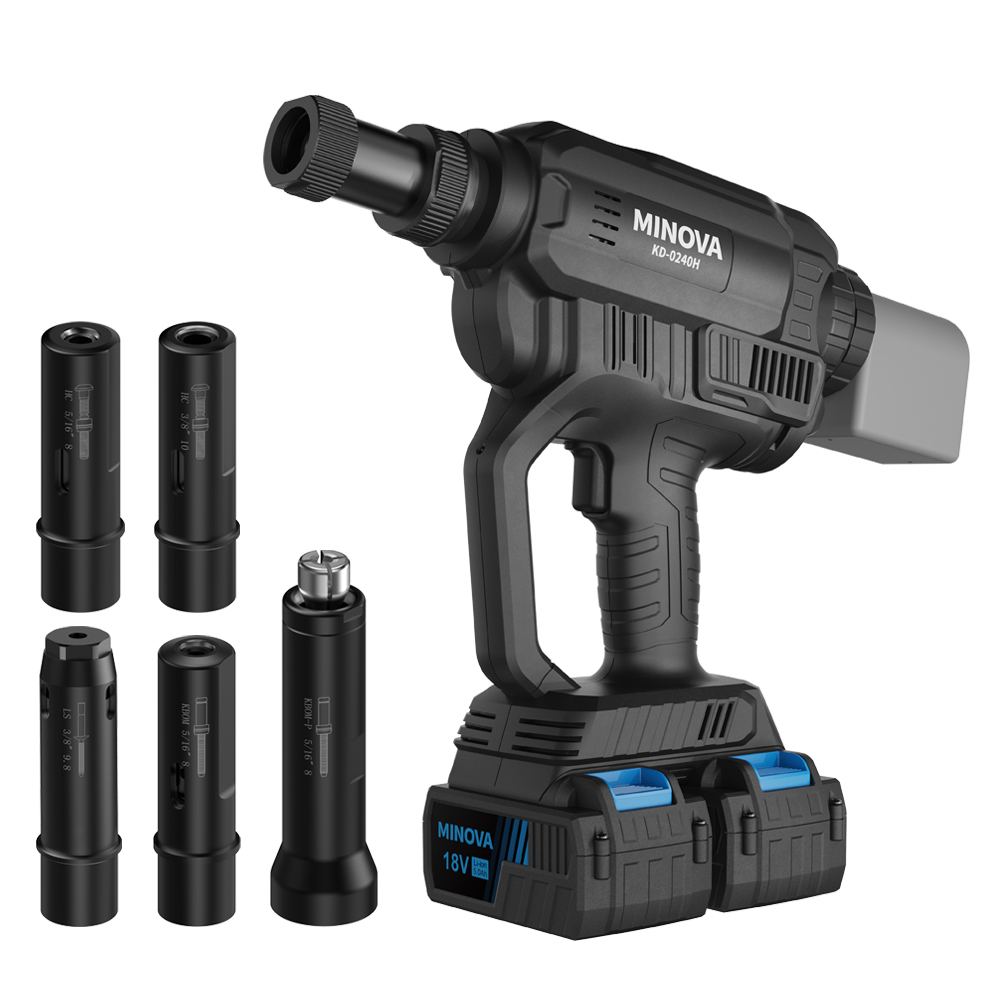

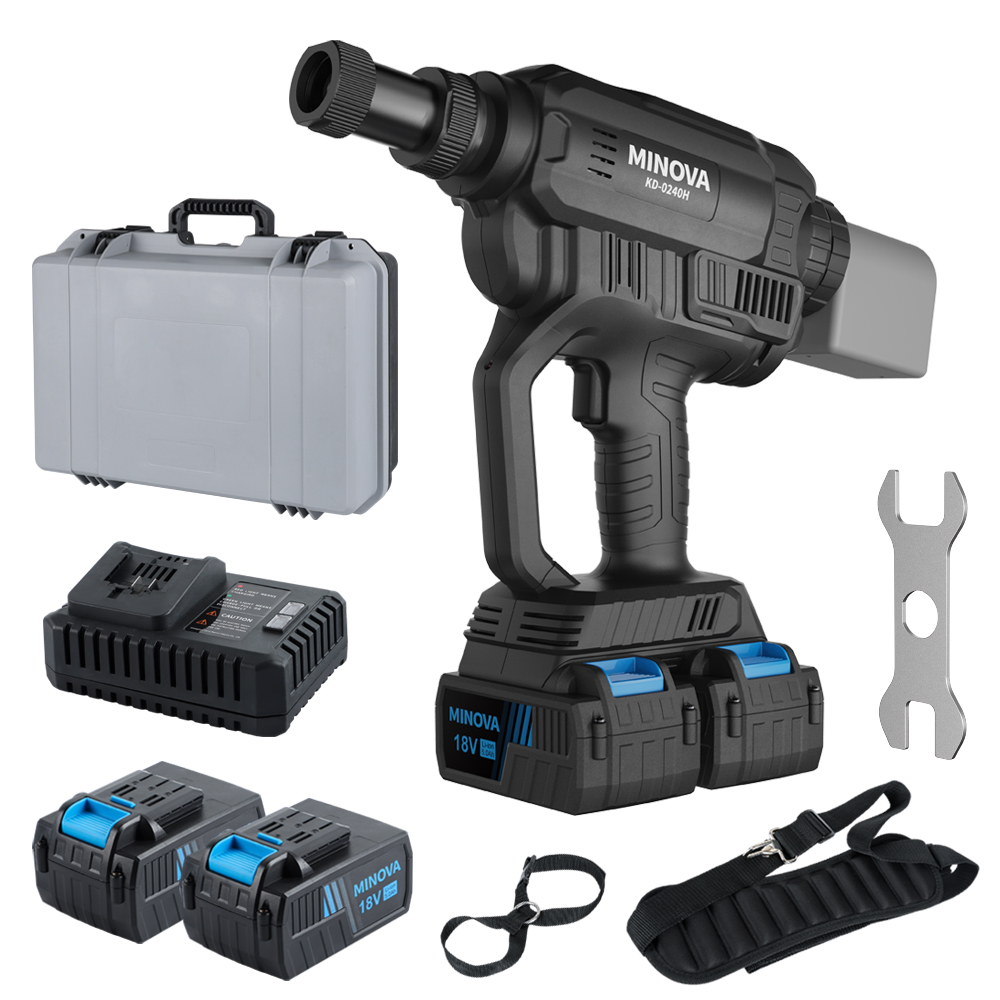

Basic Kit	1.KD-0240H Rivet Gun Body 2.KBOM 8.0mm (5/16") or Lockbolt 8.0mm (5/16") Nose Assembly Lockbolt 10.0mm (3/8") or Monobolt-style rivets 9.8mm (3/8") Nose Assembly 3.18V Battery4 4.Charger1 5.Special Wrench 6.Single Shoulder Strap Assembly 7.High Quality Tool Box
