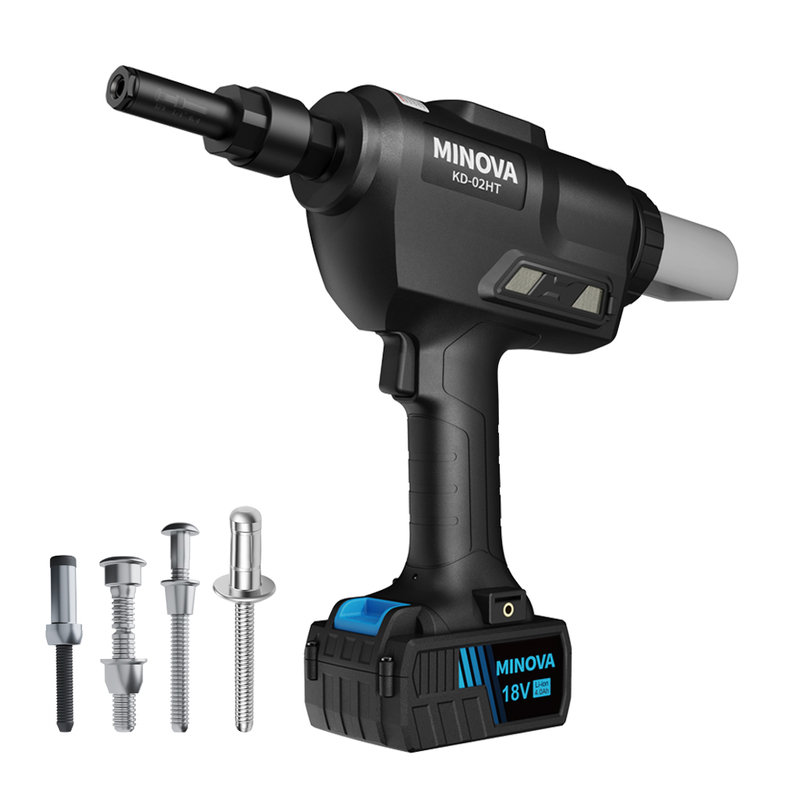

KD-02HT Brushless Tool for Multi Rivets

Name: KD-02HT Brushless Tool for Multi Rivets
Brand: MINOVA
Rating: 5.0 (40 reviews)

Brushless motor technology delivers extended service life and superior durability.
30kN High pulling force, long stroke, enabling multifunctionality.

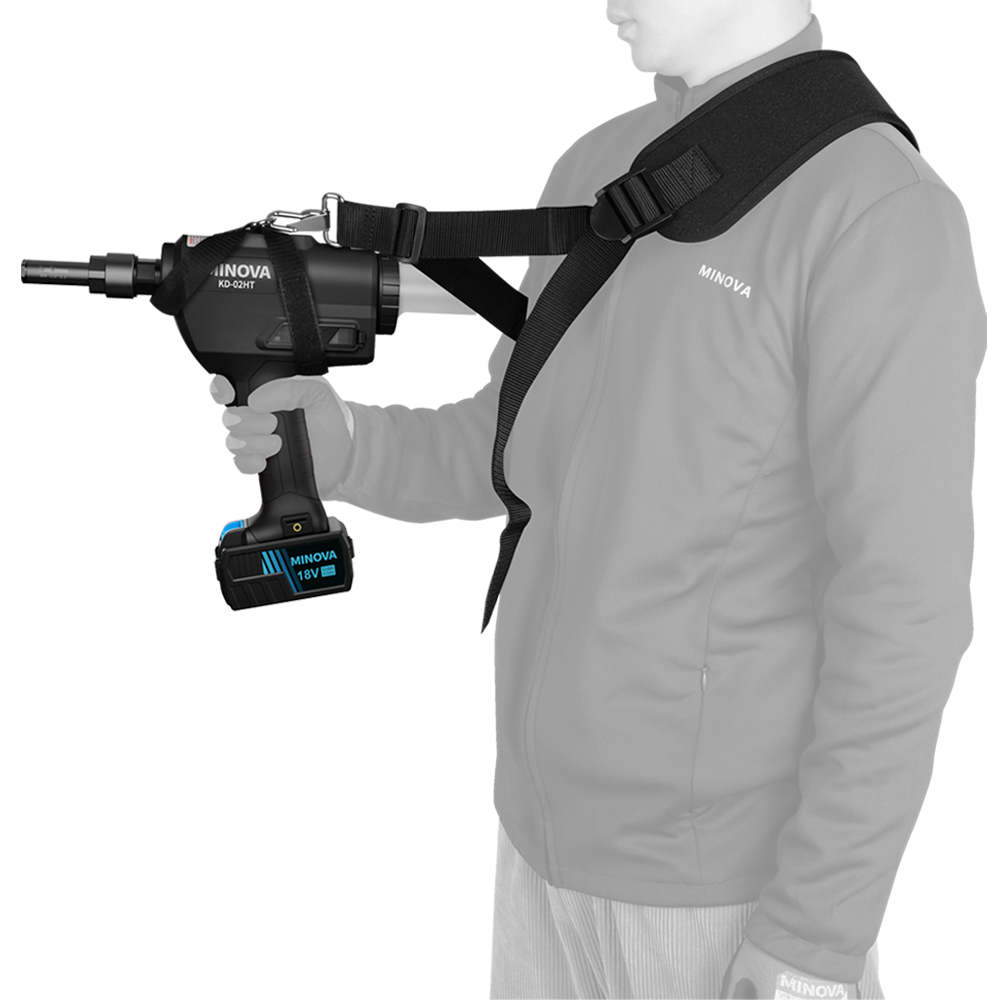

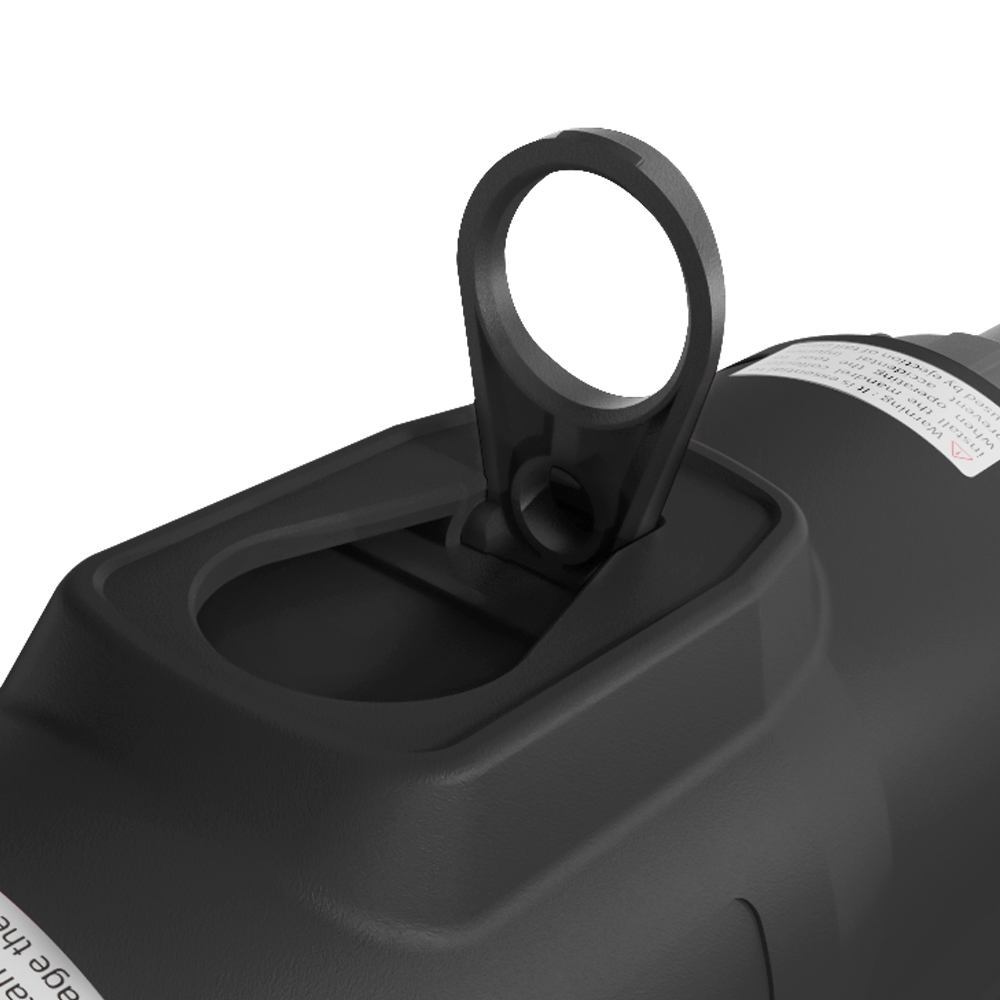

Anti-drop shoulder strap securely protects the tool from fall impacts.
Powered by an 18V/4.0Ah high-capacity lithium-ion battery.
Specifically designed for riveting Wide Range Grip Lockbolt, Lockbolt, Heim-lok.

Technical Data
Pull Force	30kN (6800lbf)
Stroke	31mm (1.2")
Net Weight	2.9kg (6.4lbs) (with a battery)
Battery	18V / 4.0Ah
Charger	100-240V AC / 50-60Hz 21V/2.3A
Charging Time	Approx. 100 mins

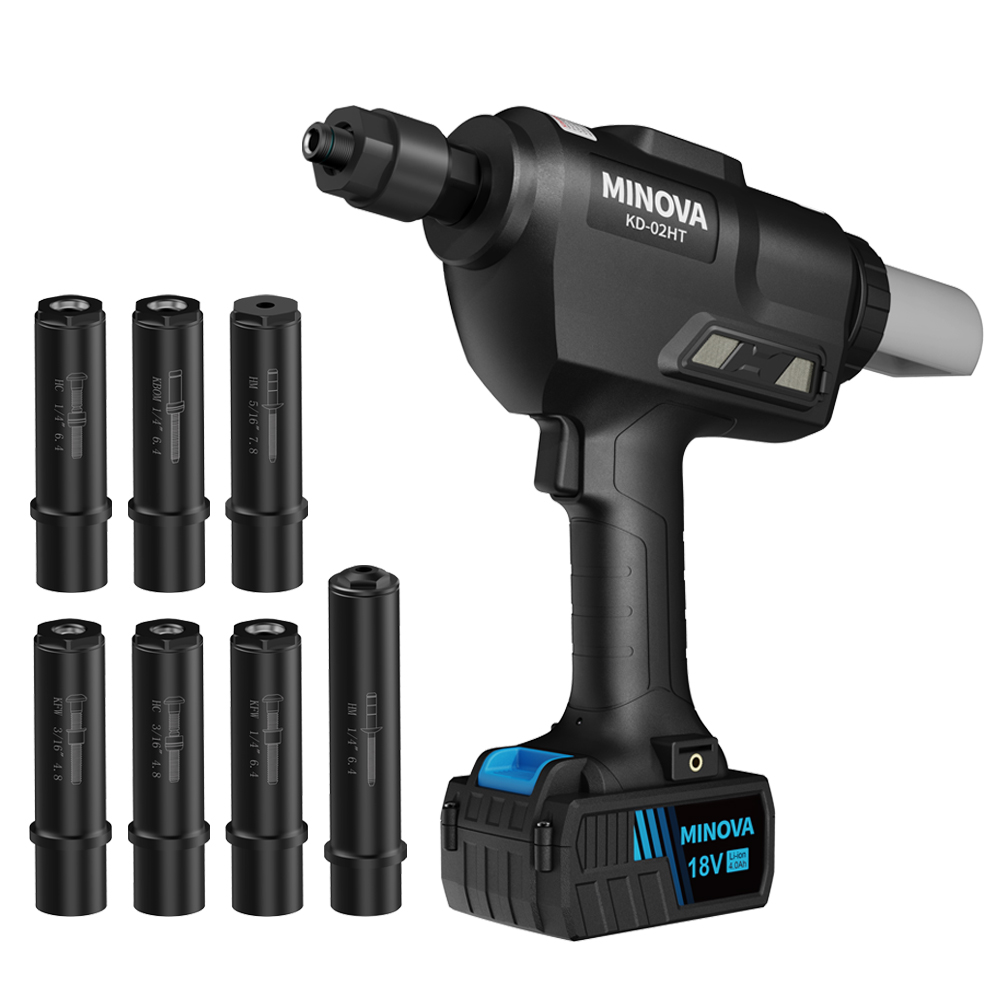

Fastener Capacity	Wide Range Grip: 4.8mm (3/16''), 6.4mm (1/4'') Lockbolt: 4.8mm (3/16''), 6.4mm (1/4'') Heim-lok: 7.8mm (5/16''), 6.4mm (1/4'') KBOM: 6.4mm (1/4'')
Service Life	50000 times Based on Heimlock Rivet 7.8mm (5/16'')
Riveting Data	Based on18V/4.0Ah battery, Steel Rivet Wide Range Grip: 4.8mm (3/16''): Approx.1100 PCS 6.4mm (1/4''): Approx.500 PCS Lockbolt: 4.8mm (3/16''): Approx.1100 PCS 6.4mm (1/4''): Approx.500 PCS Heim-lok: 7.8mm (5/16"): Approx.700 PCS 6.4mm (1/4''): Approx.800 PCS KBOM: 6.4mm (1/4''): Approx.400 PCS

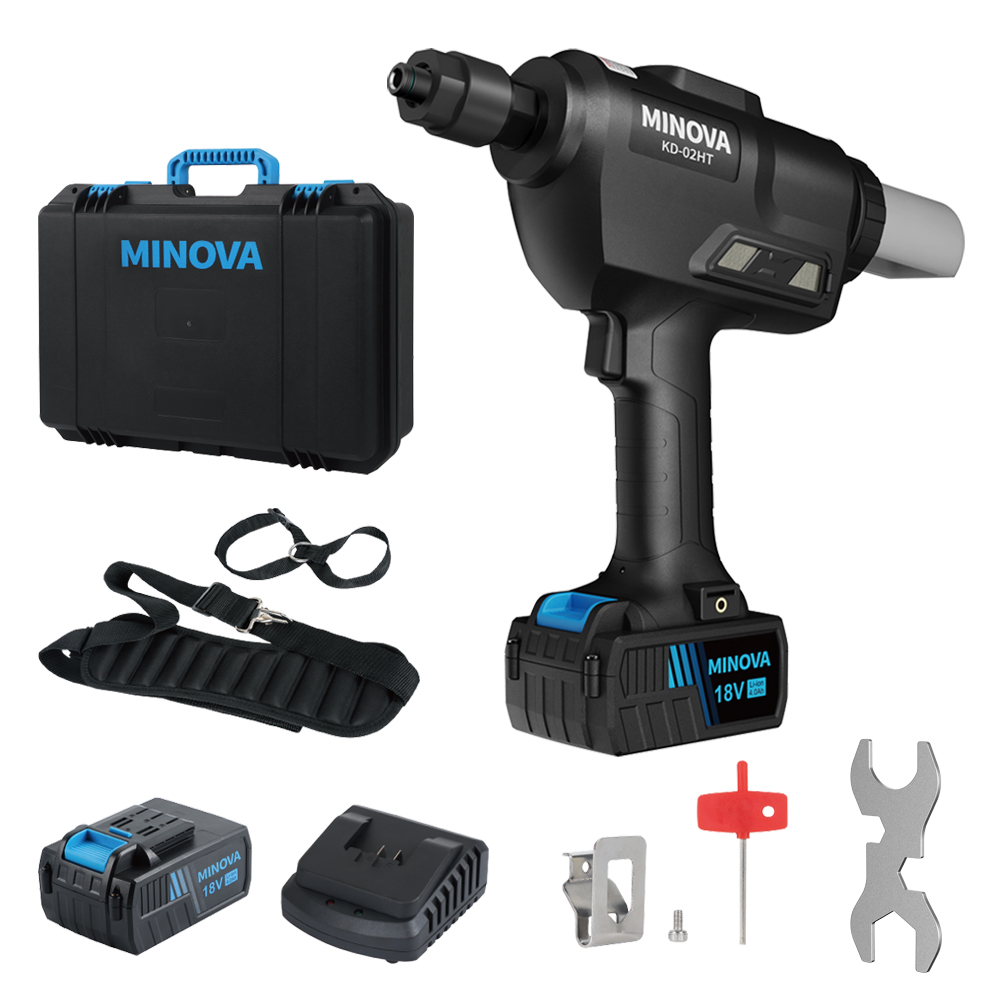

Basic Kit	1.KD-02HT Handle (exclude any nose asseblies) 2.Battery*2 (18V/4.0Ah) 3.Charger 4.Special Wrench 5.Belt Clip and Wrench 6.Single Shoulder Strap Assembly 7.High Quality Tool Box
